Wi-Fi 2.4/ 5GHz, Bluetooth & BLE EVB

The ISM43340-L77-EVB evaluation board offers 802.11 Wi-Fi connectivity over an SDIO interface, as well as Bluetooth over a UART interface.  The combo radio is targeted at embedded Linux applications or virtual Broadcom WICED.

Product Overview

ISM43341-L77_EVB

ISM4334x-L77 EVB

  • Wi-Fi standards, speeds and security:
    • 802.11 a/b/g/n with speeds up to 72Mbps
    • WEP(64/128-bit), WPA, WPA2 (Personal), 802.11i(AES, TKIP, 802.1x)
  • System-in-Package design, no need for external crystal oscillators or RF switches
  • Single supply voltage of 3.3VDC ±5%
    • WLAN host interface :4-bit SDIO for easy host interfacing
    • BT host digital interface UART (up to 4 Mbps)

Product Specifications:

This product is intended for embedded Linux/ Android applications running on qualified Host processors with a SDIO interface. This product is targeted at high volume designs with experienced Linux/Android customers.  A Software License Agreement is required for Driver support.

 Radio Only SIP Summary - Please contact us for supported processors

340_341_SIP





ISM43341-L77_EVB

ISM43340-L77-EVB

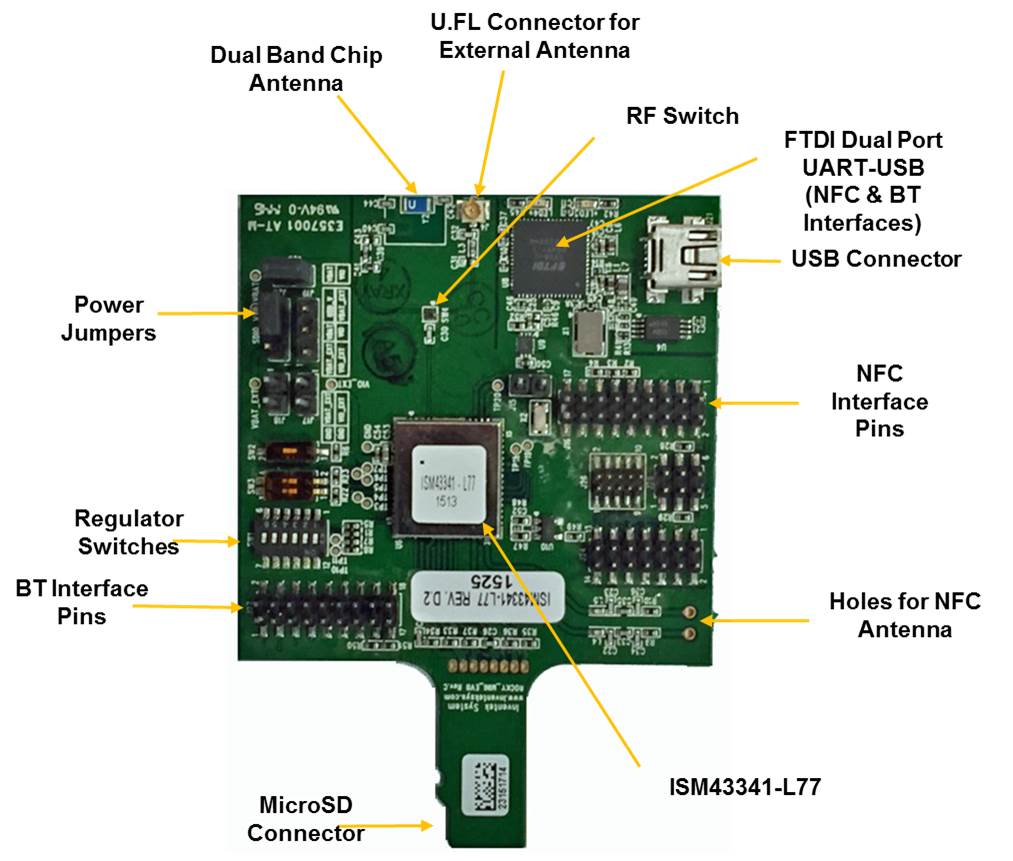

ISM4334x_l77_Block

ISM4334x-L77 Evaluation Board








Distribution Buy-on-Line:   Contact us
