Cypress Wireless Temperature Sensor

Cypress Logo

The Cypress PSOC3 Wireless Sensor Temperature demo platform is designed to read a RTD, Thermistor, Thermocouple and Temperature that are attached to the Cypress PSOC and wirelessly send the sensor data over Wi-Fi using the Inventek serial to Wi-Fi module to a PC running  the Inventek PC application that setups a TCP connection and displays the Temperature data.

These evaluation boards can be purchased from Inventek and Cypress of affiliated distributors. Some of the key features are:

  • 802.11 b/g/n Compatible based on Broadcom MAC/Baseband/Radio device.
  • Fully contained TCP/IP stack thus minimizing host CPU requirements
  • Configurable though AT commands.
  • Network features ICMP ( Ping), ARP, DHCP,TCP, UDP
  • Secure WiFi authentication WEP-128, WPA-PSK (TKIP), WPA2-PSK
  • Example PSOC3 Software
  • AT Command Demo software running on PC

PSoc3 Wireless Temp Sensor Application

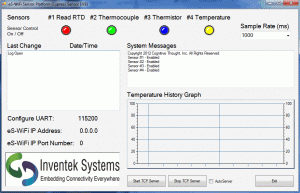

Screenshot of Cypress Wireless Temperature Sensor Application

Demo Software

 Additional Documentation

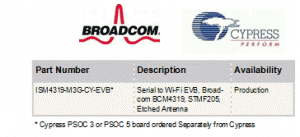

ISM4319-M3G-CY-EVB

Product Resources

PSOC3 EVB Data
